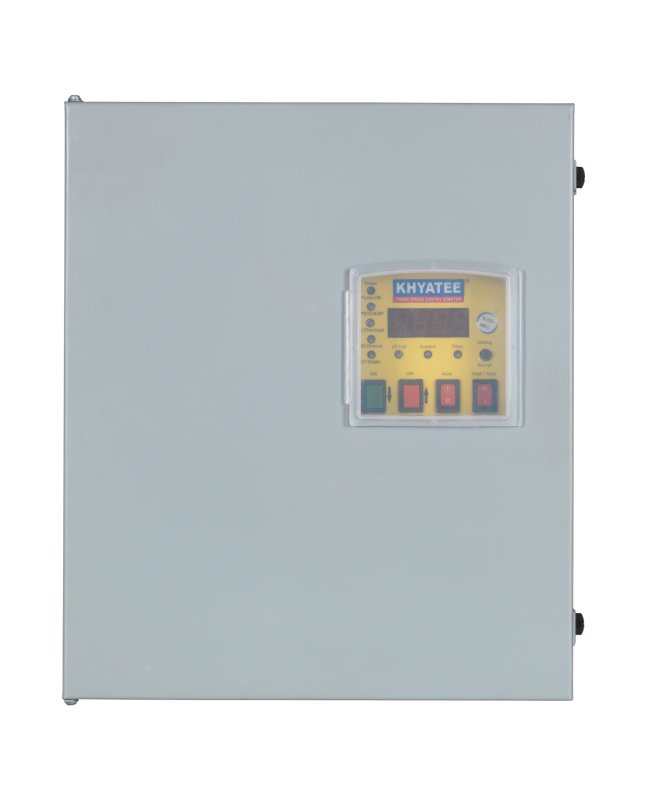

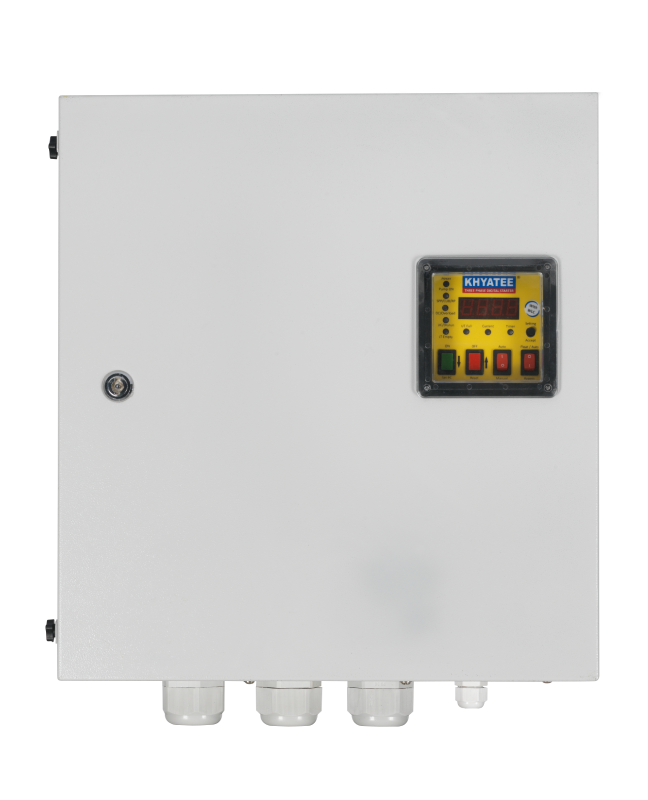

KDM DOL WLC
KDM DOL WLC
For 3Ø DOL Pumpset
Three Phase DOL Pump Starter Controller
with Water Level Controller
Features & Benefits
Starter
Contactor based starter, MCB Included
Display
Seven Segment Display - Digital Voltmeter & Ammeter
Protections
- Phase Failure (Supply Side / Motor Side)
- Reverse Phase, Voltage & Current Unbalance
- Overload / Over Current (Site Settable)
- Dryrun / Under Current (Site Settable)
- High/Low Voltage (Site Settable)
- Extreme High Current
Timer
- Power ON Timer
- Dryrun Autostart Timer (Site Settable: Off-1-999 min)
- Cyclic ON-OFF Timer (Site Settable: Off-1999 min)
Technology
Microcontroller Software Technology Embedded Controller
Settings
- One touch Pump Current Settings
- Automatic Protection Settings
Others
- Two tank fully automatic Water Level Controller
- Facility to connect Float Switch / Level Sensors / Magnetic Switch etc
LED Indications
- Power / Pump ON
- SPP/CUB/ RP
- OC/Overload
- UC / Dryrun
- LT Empty
- UT Full
- Current
- Timer
Switches
- ON / Set PC
- OFF / Reset
- Auto / Manual
- Float Auto / Bypass
- Setting / Accept
Applications
- Ground water supply to water works
- Water supply to single / multiple overhead tanks
- Domestic and community water supply
- Gardening and small farm irrigation
- Dewatering from sumps
Suitable for Pumpset
- All types of DOL pumpset
- Borewell & openwell submersible DOL pumpset
- Centrifugal monoblock DOL pumpset
- Dewatering DOL pumpset
- Induction motors
Technical Specifications
- Power Rating
- 0.5 - 30 HP
- Phase
- Three
- Rated Voltage
- 440V
- Frequency
- 50 Hz
- Voltage Range
- 280 - 500V
